Standard Panel 410x510

Aricat’s standard panel 410×510 is the perfect combination between the catalytic technology and the infrared technology.

This standard model is molded in :

1. painted metal sheet version / 12 tenths
2. stainless steel version AISI-304 / 8 tenths

Aricat’s infrared catalytic panels are the perfect combination of catalytic technology and infrared technology.

The range of IR burners is available with 180 ° to 550 ° superficial surface temperature and with specific power ranging from 0.4kW (244kcal / h) to 17kW (14617) depending on the sizes.

They can be used with both LPG and natural gas. They are easy to integrate into existing or new machines, they can also be mounted horizontally, vertically and inclined; Installable downwards and upwards.

They are equipped with all gas safety systems.

They can be designed and manufactured to meet the specific needs of our customers.

Aricat’s standard panel is completely interchangeable with all existing models present in the market (examples: tannery, automotive, painting, screen printing, wood, rubber, foundry).

Types:

1. model standard with bimetallic valve
2. model standard with bimetallic valve and electric thermostat
3. model standard with K type probe for ovens applications
4. model standard with manual shut-off valve
5. model standard with thermostatic manual valve for panels used as independent thermic treatment units or heating units

Types of fuel: Aricat catalytic panels are designed to work with both PROPANO (G31) and NATURAL GAS (G20). The right amount of gas will be dosed by the nozzle integrated in the burner. Any fuel conversion can only be carried out by qualified personnel.

Power: It is possible to modulate the power of the panel by intervening on the gas supply pressure in accordance with the limits on the label applied on the back of the product

Temperature: The temperature can be modulated between 180 ° and 550 ° degree

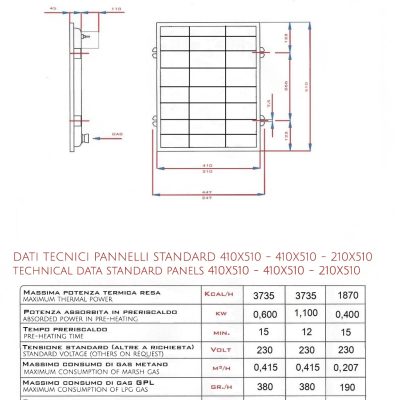

Dimensions: Aricat can develop specific dimensions on customer’s request. Standard sizes: 210 x 510 (cm) – 260 x 510 (cm) – 410 x 510 (cm)

Installation, Maintenance, Positioning: The installation and maintenance of the catalytic bulbs must be carried out by qualified personnel to ensure compliance with applicable regulations. They are easily installable on any structure. Burners do not have moving parts, so maintenance is minimal.

They can be positioned in any way: horizontal, vertical, inclined downwards and upwards

Safety: There is the possibility to operate in potentially explosive areas thanks to our technology based on combustion without flame. In fact, our products are used where the presence of highly flammable solvents is considerable (ATEX areas).

Advantages:

• SAVINGS OF COSTS, ENERGY AND SPACE (they fill about 1/3 of space compared to traditional systems, working with minimal fuel consumption)
• HIGH STARTING AND PROCESSING RAPIDITY (INCREASE OF PRODUCTION)
• HIGH SECURITY (FLAMMABLE ABSORPTION)
• SIMPLICITY OF INSTALLATION, MAINTENANCE AND TRANSPORT
• HIGH SPECIFIC POWER: 30kW / m2
